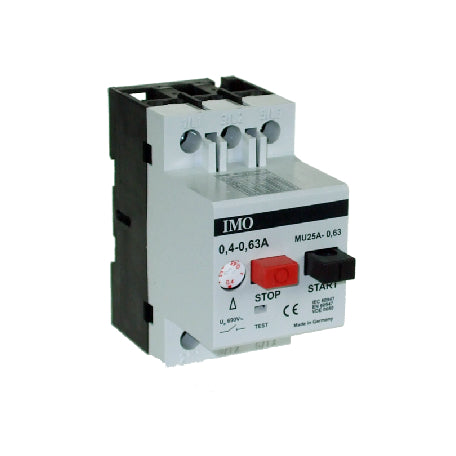

IMO MU25A0.6 MANUAL MOTOR STARTER

IMO MU25A0.6 MANUAL MOTOR STARTER

Regular price $114.00 CAD
Regular price Sale price $114.00 CAD
Sale Sold out

Features and Benefits

  • Overload protection
  • Short circuit protection
  • Phase differential detection
  • DIN rail mounting
  • Test facility
  • Ambient temperature compensation
  • Finger touch protection
  • Lockable off position
  • Designed to EN60947-4-1 and EN60947-2
  • Bus-bar system
  • Enclosures
View full details

Description

Electricity overloads and surges, as well as short circuits can be damaging to sensitive electronic equipment and components as well as to consumers, so it's important to ensure you have the appropriate protective devices installed in your application. IMO Circuit Protection products are designed for the protection of electrical installations and include Miniature Circuit Breakers, Residual Current Devices, Residual Current Breakers with Overload (RCBO), Surge Protection Devices and Isolating Switch Disconnectors.

The IMO Circuit Protection product range offers solutions for overcurrent, short circuit, earth leakage, surge protection and isolation requirements, alongside a range of accessories including auxiliary / signal contacts, shunt and undervoltage trips and safety lock offs. All IMO Circuit Protection products can be specified as part of our Value Added Sub-Assembly service.

Specification

Current Range Amps: 0.40 - 0.63
Magnetic Short Circuit Trip-Amps: 7.6
Rated insulation voltage UI 690V AC
Rated current Ith open, at 50˚C 25 amps
Mechanical life 100,000 ops
Electrical life – AC3 duty 100,000 ops
Switching frequency 30 ops per hour
Operate time – approximately 7 mS
Total power loss (warm condition) 6-8 W
Temperature compensation open –20 to +55˚C
Rating auxiliary switch – AC15 400V 2A
Mounting position Any
Power consumption – undervoltage trip 2.7VA 1.8W
– shunt trip 2.7VA 1.8W
Terminal wiring cross section 1 or 2 wires main 0.75 – 4mm2
aux 0.75 – 2.5mm2
Weight 0.25 Kg
