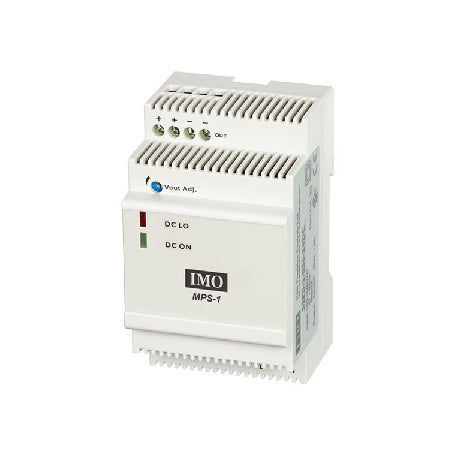

IMO MPS-1-036-24DC DIN RAIL POWER SUPPLY

IMO MPS-1-036-24DC DIN RAIL POWER SUPPLY

Regular price $106.00 CAD
Regular price Sale price $106.00 CAD
Sale Sold out

Features and Benefits

  • Class 2
  • UL, cUL, UR, cUR, CE
  • Universal input 90~264VAC
  • High efficiency
  • Short circuit protection
  • Internal input filter
  • 3 Year warranty
  • Modular design
  • IP20
View full details

Description

IMO’s range of industrial power supplies has been designed especially for the control and automation marketplace. The single-phase DPS range offers the benefits of slim lines, universal input, high efficiency, and short circuit protection. The IMO DPS-1 range of AC/DC DIN rail mountable power supplies offers the benefits of slim lines and the security of IMO’s 3-year warranty. The DPS-1 range provides multiple choices for all low-power electrical or electronic systems commonly used in automation applications. As such, they provide a reliable power source for components such as sensors, relays, contactors, timers, temperature controllers, PLCs, process controllers, and HMIs – all of which are also available from IMO.
Offering high efficiency up to 90%, the DPS-1 range is short-circuit protected and has its own integrated internal input filter. The range includes 5W, 10W, and 18W class 2 power supplies in 22.5mm wide plastic enclosures, 30W and 60W in 40.5mm wide plastic enclosures, 100W & 120W in 63.5mm wide plastic enclosures, 240W and 300W in 83mm wide metal enclosures, and the high powered 480W in 175mm wide metal enclosures.

Specification

Frame Size: 3
Input Voltage: 90 ~ 264VAC
Output Wattage: 36W
Output Voltage: 24VDC
Output Current: 1.5A
Efficiency (min/typ): 81/84%
General Specification:
Approval: cURus - Class 2
Isolation Voltage: 3000VAC / 4242VDC
Isolation Resistance: 100MΩ @ 500VDC
Ambient Temperature: -40 to +71°C
Derating (61 to 71°C): 2.5%/°C
Storage Temperature: -40 to +85°C
Relative Humidity: 20 to 95% RH
Cooling: Free air convection
Dimensions: 91 x 53 x 56.5mm
Weight: 190g
Case Material: Plastic
Input Specifications:
Rated Input Voltage: 100 to 240VAC
Input Voltage Range: 90 to 264VAC, 120 to 375VDC
Line Frequency: 47 to 63Hz
Inrush Current (115/230VAC): 25/50A
Output Specifications:
Output Voltage Accuracy: ±1%
Minimum Load: 0%
Line Regulation: ±1%
Load Regulation: ±1%
Turn On Time: 1000ms after AC applied to input at full resistive load
Voltage Fall Time: 150ms
Voltage Rise Time: 150ms
Hold Up Time (115/230VAC): 20/100ms
Temperature Coefficient: ±0.03%/°C
Ripple & Noise: 50mV
Voltage Trim Range: N/A
DC ON Indicator (Green LED): 19.2-21.6VDC
DC LOW Indicator (Red LED): 19.2-21.6VDC
Control & Protection:
Rated Overload Protection: 125 to 185%
Over Voltage Protection: 30-33VDC
Output Short Circuit: Hiccup Mode Fold Forward
