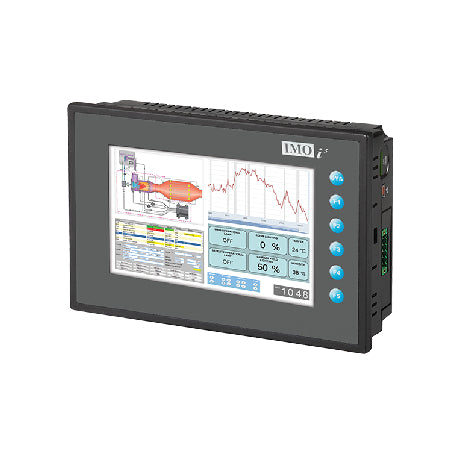

IMO I3E14Z/00000-SEHF INTEGRATED HIM/PLC (No I/O)

IMO I3E14Z/00000-SEHF INTEGRATED HIM/PLC (No I/O)

$4,285.00 CAD
$4,285.00 CAD
Sale Sold out

Features and Benefits

  • 7” TFT Colour Touch Screen Display
  • 65,535 Colours, QVGA (800 x 480)
  • MicroSD™ Data Storage up to 32GB
  • Real Time Clock
  • 2 CAN Ports, 3 RS-232 / RS-485
  • 2 Integral Ethernet Ports
  • USB Port for Programming
  • USB Port for Flash Drives up to 2TB
  • Addressable Function Keys
  • 1MB RAM (Program), 27MB (Graphical)
  • IP65 (NEMA 4)
  • 10 - 30 VDC Power Supply
  • Free Configuration Software
  • Remote I/O Communication
  • Optional - Modem (SMS, GSM, GPRS)
  • Online programming
  • Supports i3
  • RMI Webserver Functionality
View full details

Description

i3AX Intelligent Control Station. As with all models of the i3 Series, the i3AX brings you a combination of HMI and PLC functionality in a compact and handy unit, that offers MicroSD data storage, a real-time clock, IP65 (NEMA 4X) protection rating and free configuration software.

The i3AX has a 128x64 LCD monochrome display with 14 addressable function keys, up to 24 digital inputs, up to 6 analogue inputs, up to 4 analogue outputs and up to 16 digital outputs. Supports i3RMI webserver functionality. The i3AX is FCC, UL and cUL approved.

Data sheet

Specification

Required Power (Steady State): 170mA @ 24VDC
Required Power (Inrush): 25A for <1ms @ 24VDC DC Switched
Primary Voltage Range: 10-30VDC
Relative Humidity: 5 to 95% Non-Condensing
Clock Accuracy: +/-20 ppm Max. at 25°C (+/-1 minute per month)
Operating Temperature: -10°C to +60°C
Storage Temperature: -30°C to +70°C
Weight: 0.90kg (without I/O)
Approvals: cUL, UL, CE, FCC
Display Type: 7” WVGA TFT
Resolution: 800 x 480 Pixels
Colour: 16-bit (65,535 colours)
Screen Memory: 27MB
User-Programmable Screens: 1023 (max. 50 objects per screen)
Backlight: LED - 50,000 hours life
Touchscreen Life & Type: 1 million touch +; Resistive Type
Screen Update Rate: User configurable within the scan time (perceived as instantaneous in many cases)
Control Language Support: Advanced Ladder Logic, Full IEC 61131-3
Logic Program Size & Logic Scan Rate: 1MB Maximum, 0.013ms/k
Online Programming Changes: Supported in Advanced Ladder
I/O Support:
Digital Inputs: 2048
Digital Outputs: 2048
Analogue Inputs: 512
Analogue Outputs: 512
General Purpose Registers:
50,000 (words) Retentive
16,384 (bits) Retentive
16,384 (bits) Non-retentive
Serial Ports:
1 RS-232 & 1 RS-485 on first modular jack (MJ1/2)
1 RS-232 or 1 RS-485 on second modular jack (MJ3)
USB mini-B: USB 2.0 (480MHz) Programming & Data Access
USB A: USB 2.0 (480MHz) for USB Flash Drives (up to 2TB)
CAN: Remote I/O, Peer-to-Peer Comms, i3 Configurator
Ethernet: 10/100MB (Auto-MDX), Modbus TCP, HTTP, FTP, SMTP, i3 Configurator, Ethernet IP, i3-RMI
Remote I/O: IOS, Smart I/O, iSmart
Removable Memory: MicroSD™ (support for 32GB max) Application updates, Datalogging, more
