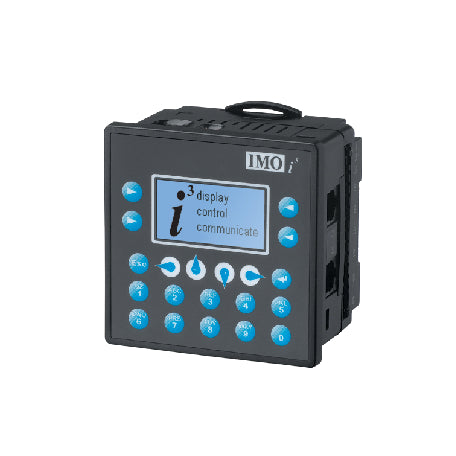

IMO I3AX12X/13C14-SEHF PLC/HMI/IO (PID,AXIS)

IMO I3AX12X/13C14-SEHF PLC/HMI/IO (PID,AXIS)

$1,847.00 CAD
$1,847.00 CAD
Sale Sold out

Features and Benefits

  • 128 x 64 Monochrome LCD display
  • MicroSD™ data storage
  • Real time clock
  • 1 CAN Port, 2 RS-232 / RS-485
  • 1 Integral Ethernet Port
  • Addressable Function Keys
  • 256kB RAM (Program), 16MB Graphical
  • IP65 (NEMA 4X)
  • 10 - 30 VDC Power Supply
  • Free Configuration Software
  • Remote I/O Communication
  • Optional - Modem (SMS, GSM, GPRS)
  •  Supports i3 RMI Webserver Functionality
View full details

Description

i3AX Intelligent Control Station. As with all models of the i3 Series, the i3AX brings you a combination of HMI and PLC functionality in a compact and handy unit, that offers MicroSD data storage, a real-time clock, IP65 (NEMA 4X) protection rating and free configuration software.

The i3AX has a 128x64 LCD monochrome display with 14 addressable function keys, up to 24 digital inputs, up to 6 analogue inputs, up to 4 analogue outputs and up to 16 digital outputs. Supports i3RMI webserver functionality. The i3AX is FCC, UL and cUL approved.

Data sheet

Specification

Required Power (Steady State): 84mA @ 24VDC
Required Power (Inrush): 30A for 1ms @ 24VDC
Primary Voltage Range: 10-30VDC
Relative Humidity: 5 to 95% Non-Condensing
Clock Accuracy: +/-90 seconds per month at 20°C
Operating Temperature: -10°C to +60°C
Storage Temperature: -20°C to +70°C
Weight: 0.59kg
Approvals: cUL, UL, CE, FCC
Control Language Support: Advanced Ladder Logic, Full IEC 61131-3
Logic Program Size & Logic Scan Rate: 256kB Maximum, 0.7ms/k
Digital Inputs: 2048
Digital Outputs: 2048
Analog Inputs: 512
Analog Outputs: 512
General Purpose Registers: 9,999 (words) Retentive, 2,048 (bits) Retentive, 2,048 (bits) Non-retentive
Display Type: Trans-reflective LCD (Outdoor Readable)
Resolution: 128 x 64 Pixels
Color: Monochrome
Screen Memory: 16MB
User-Programmable Screens: 1023 (max. 50 objects per screen)
Backlight: LED - 30,000 hours life
Screen Update Rate: User configurable within the scan time (perceived as instantaneous in many cases)
Serial Ports: 1 RS-232 or 1 RS-485 on first modular jack (MJ1), 1 RS-232 or 1 RS-485 on second modular jack (MJ2), USB: mini-B USB 2.0 (480MHz) Programming & Data Access
CAN: Remote I/O, Peer-to-Peer Comms, i3 Configurator
Ethernet: 10/100MB (Auto-MDX), Modbus TCP, HTTP, FTP, SMTP, i3 Configurator, Ethernet IP, ASCII TCP, i3-RMI
Remote I/O: IOS, Smart I/O, iSmart
Removable Memory: MicroSD™ (support for 32GB max) - Application updates, Datalogging, more
