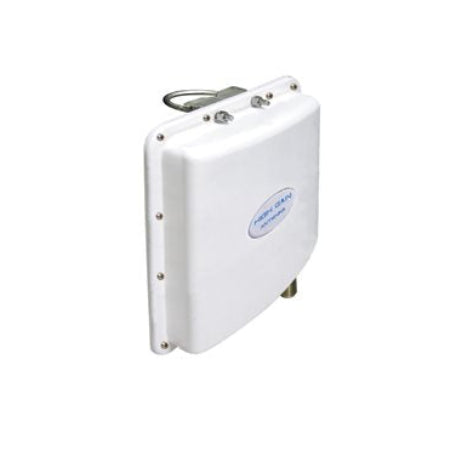

MOXA ANT-WSB5-PNF-16 WLAN Antenna

$407.00 CAD

Sale Sold out

Product variants

Quantity

Features and Benefits

High gain antenna
N-type (female) connector supported

View full details

Description

The ANT-WSB5-PNF-16 is asingle-band high-gain directional panel antenna with a waterproof N-type female connector. The antenna provides a gain of 16 dBi at 5 GHz. The IP65-rated housing, pole-mounting support, and wide operating temperature range of -40 to 85°C make it suitable for outdoor use.

Data sheet

Specification

Antenna Characteristics
Frequency: 5.15 to 5.85 GHz
Antenna Type: Directional, Panel
Typical Antenna Gain: 16 dBi
Connector: N-type (female)
Impedance: 50 ohms
HPBW/Horizontal: 30°
HPBW/Vertical: 23°
V.S.W.R.: 1:2.0 max.
Power Handling: 10 W (max.)
Polarization: Vertical

Physical Characteristics
IP Rating: IP65
Dimensions: 260 x 260 x 44 mm (10.27 x 10.27 x 1.73 in)
Weight: 807 g (1.78 lb)
Radome Material: PC and ABS
Installation: Pole mount
Radome Color: White

Environmental Limits
Operating Temperature: -40 to 85°C (-40 to 185°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)

Warranty
Warranty Period: 1 year
Details: See www.moxa.com/warranty
