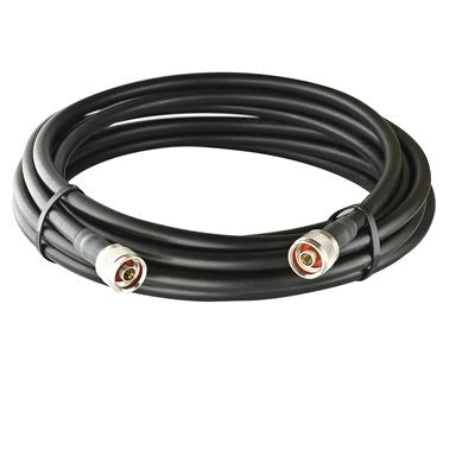

MOXA A-CRF-NMNM-LL4-300 Wireless Antenna Cable

MOXA A-CRF-NMNM-LL4-300 Wireless Antenna Cable

$187.00 CAD
$187.00 CAD
Sale Sold out

Features and Benefits

  • Cable Type: LMR-400 Lite
  • Connector Type: N-type (male) to N-type (male)
  • Cable Length: 3 m
  • -40 to 85°C Operating Temperature
View full details

Description

The A-CRF-NMNM Series is a set of LMR-400 LITE cable accessories with N-type (male) to N-type (male) connectors.

Data sheet

Specification

Physical Characteristics
Cable Type: LMR-400 Lite
Connector Type: N-type (Male) to N-type (Male)
Cable Length: 3 m
Outer Diameter: 10.29 mm (0.41 in)
Min. Bend Radius: 24.5 mm (0.96 in)
Impedance: 50 ohms
V.S.W.R.: 1.65:1 Max @ 5150 to 5875 MHz
Insertion Loss: -1.6 dB (max.)

Environmental Limits
Operating Temperature: -40 to 85°C (-40 to 185°F)

Warranty
Warranty Period: 1 year
Details: See www.moxa.com/warranty
