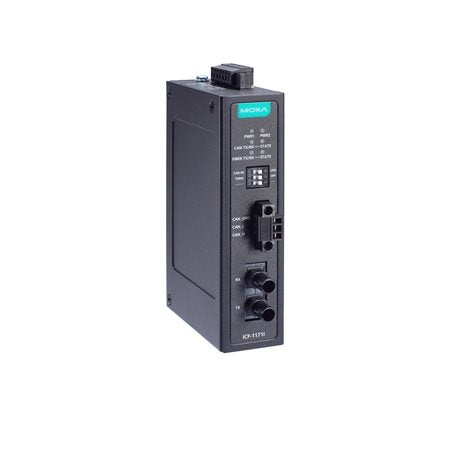

MOXA ICF-1171I-M-ST-T Serial to Fiber Converter

MOXA ICF-1171I-M-ST-T Serial to Fiber Converter

$745.00 CAD
$745.00 CAD
Sale Sold out

Features and Benefits

  • Transmits data for up to 40 km over optical fiber
  • Converts CAN signals to fiber and vice versa
  • Supports CAN 2.0A, CAN 2.0B, and CAN FD; conforms with the ISO 11898 standard
  • CAN 2.0 supports auto-baudrate
  • CAN 2.0 arbitration rate up to 1 Mbps
  • CAN FD arbitration rate up to 1 Mbps; data rate up to 5 Mbps
  • Dual power inputs for redundancy
  • Wide-temperature model available for -40 to 75°C environments
  • DIP switch for 120-ohm terminal resistance
  • Rotary switches for CAN 2.0/CAN FD arbitration and data rate configuration
  • LEDs for CAN bus diagnostics, fiber diagnostics, and power input status
View full details

Description

The ICF-1171I Series CAN-to-fiber converters are used in pairs to connect two CAN 2.0 or two CAN FD devices or networks via single-mode or multi-mode optical fiber. The ICF-1171I provides 2-kV isolation protection for the CAN interface and dual power inputs to ensure that your CANbus system will work uninterrupted.

Data sheet

Specification

Serial Interface
Optical Fiber: 100Base-Fx ports (single-mode/multi-mode ST connector)
Optical Fiber: Note: The “typical distance” of a specific fiber transceiver can be computed using Link budget (dB) > Dispersion penalty (dB) + Total link loss (dB).

CAN Interface
Isolation: 2 kV (built-in)
No. of Ports: 1
Signals: CAN_L, CAN_H, CAN Signal GND
Terminator: N/A, 120 ohms (by DIP)
Protocols: CAN 2.0A, CAN 2.0B, CAN FD, compatible with ISO 11898 standard (DIP switch to select CAN 2.0/CAN FD setting)

Fiber Interface
No. of Ports: 1
Connector: ICF-1171I-S-ST/ ICF-1171I-S-ST-T: Single-mode ST connector, ICF-1171I-M-ST/ ICF-1171I-M-ST-T: Multi-mode ST connector
Optical Fiber: Single-mode, typical distance 40 km, Multi-mode, typical distance 2 km

Power Parameters
Input Current: 188.5 mA (max.)
Input Voltage: 12 to 48 VDC
No. of Power Inputs: 2
Power Connector: Terminal block

Relays
Contact Current Rating: Resistive load: 1 A @ 30 VDC
Pinouts: NC, COM, NO

Physical Characteristics
Housing: Metal
IP Rating: IP30
Dimensions: 30.3 x 70 x 115 mm (1.19 x 2.76 x 4.53 in)
Weight: 294 g (0.65 lb)
Installation: DIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits
Operating Temperature: ICF-1171I-S-ST, ICF-1171I-M-ST: 0 to 60°C (32 to 140°F), ICF-1171I-S-ST-T, ICF-1171I-M-ST-T: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications
EMC: EN 55032/35
EMI: CISPR 32, FCC Part 15B Class A
EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV, Signal: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF
International Approval: KC
Safety: UL 62368-1, EN 62368-1
Vibration: IEC 60068-2-6

MTBF
Time: 2,412,885 hrs
Standards: Telcordia (Bellcore), GB

Warranty
Warranty Period: 5 years
